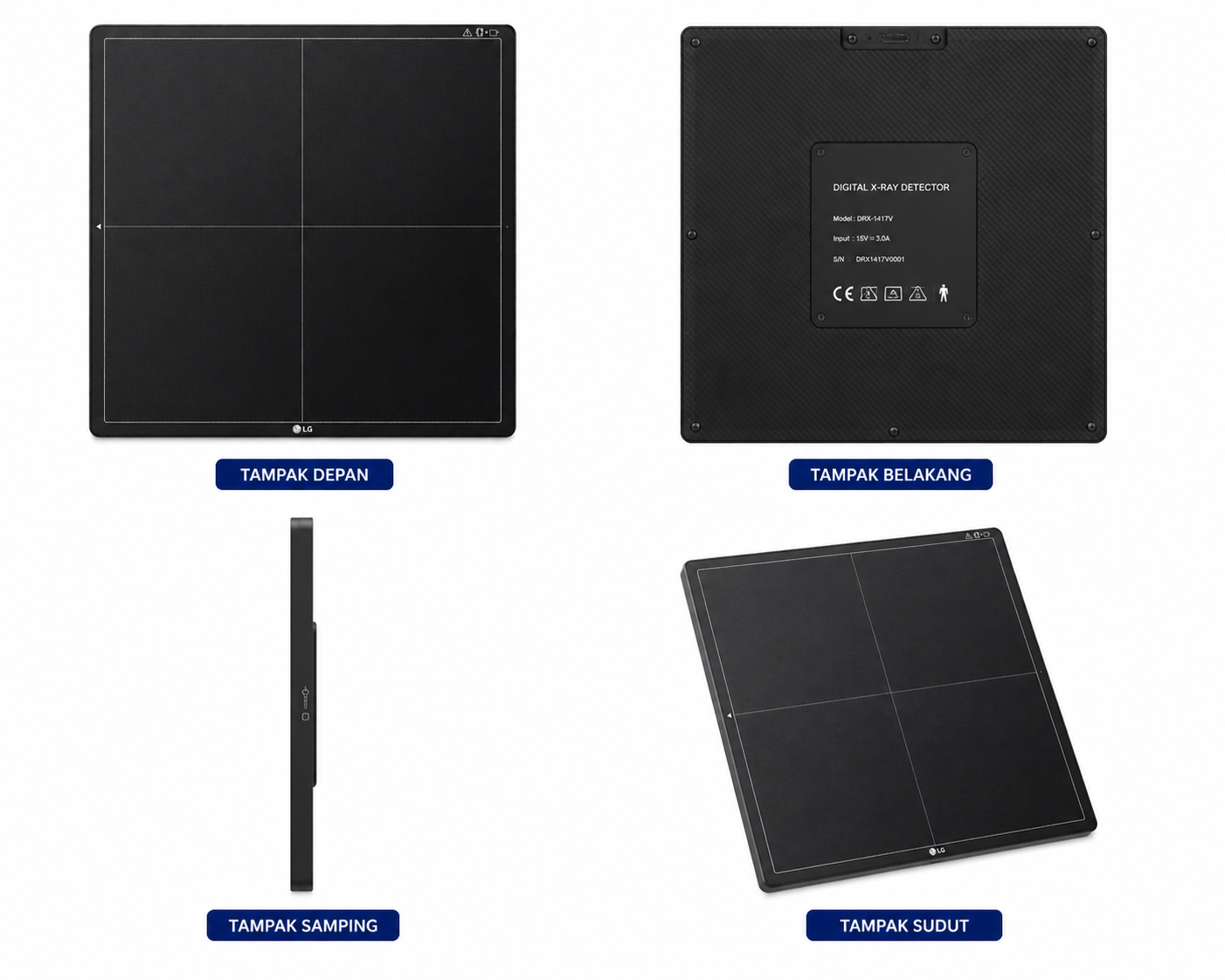

DIGITAL RADIOLOGI

Digital Radiologi (DR) LG digital (DXD) canggih yang menawarkan pencitraan cepat dan tajam menggunakan teknologi Oxide TFT (a-Si TFT) untuk klinik dan rumah sakit.

ACCESSORIES

CD

Manual, Calibration SW

Cable

Power cord, Main Cable 7m (LAN Cable, Sync cable Option)

Other

Book Manual , Outgonig Inspection sheet

BATTERY

Type

Detachable

Nominal Capacity

36Wh (7.7V, 4725mAh)

Nominal Voltage

7.7V

Dimensions(WxDxH, mm)

112.2 * 158 * 8.4

Weight(g)

240

Operation Time

Typ. 320 shots/ 8.0 hrs (Condition : Cycle time 90sec)

Battery duration in standby status

Typ.8.2hrs

Hot swap

Yes (1min)

WARRANTY

Warranty

36 Month

SENSOR(PANEL)UNIT

Application

General Radiography

TFT Type

Oxide

Scintillator

Csi

Number of Pixels

3072x2560

Pixel Pitch

140㎛

TFT Dimensions(WxDxH, mm)

369 x 442 mm

TFT Active Area(mm)

358.40 x 430.08

X-ray sensitive Pixel

2560x3072

X-ray sensitive Area(mm)

430.08 × 358.40

Sensor protection plate

Carbon Fiber Plate

Input

DC24V/2.1A

Power consumption

Typ. 38W

Dimensions(WxDxH, mm)

384 x 460 x 15.6 mm

Weight(kg) / Icld. Battery (Typ.)

3.0kg

Maximum Load Weight

Full (Uniform Load) : 400kgLocal (Point Load) : 200kg

Falling (IEC60601-1 Test Condition)

1.5m

Cycle Time (Wired / Wireless)

4.5sec / 5sec

Full Image (Raw Image) (Typ.) * without window time

Wired 1.5 sec / Wireless 2 sec

CONTROL BOX

Power Input

AC100 to 240V, 47-63Hz

Power Output

DC24V / 2.1A

AC Power Cord

1.5m (Black)

Dimensions(WxDxH, mm)

125 x 255 x 109.8mm

weight(kg)

1.3 kg

BATTERY CHARGER

Input voltage

19V

Output voltage

8.7V

Charging Time

3 Hours

Slot Q'ty

2

Bundle battery Q'ty

2

Dimensions(WxDxH, mm)

268.4 x 186.9 x 54.9mm

weight(kg)

0.5 kg

AC ADAPTER FOR BATTERY CHARGER

Dimensions(WxDxH, mm)

134x59.8x31mm

DC Cable length

1,500 mm

AC Power Cord

Yes

Input

100 ~ 240VAC

Output

19V/3.42A

Weight(kg)

0.335 kg

WATERTIGHTNESS

Watertightness

IP68

Cleaning and desinfecting products

Isopropanel 100%, Ethanol 70%, Cidex OPA, 0.9% Nacl solution

Anti-Bacteria

JIS Z 2801 0.99%

MTF(TYP.)

MTF @ 0.5lp/mm

84%

MTF @ 1lp/mm

61%

MTF @ 2lp/mm

30%

MTF @ 3lp/mm

15%

DQE(TYP)

DQE @ 0.1lp/mm

78%

DQE @ 0.5lp/mm

70%

DQE @ 1lp/mm

57%

DQE @ 2lp/mm

38%

DQE @ 3lp/mm

26%

Sensitivity( lsb/uGy ) / Programmable

3.57 lp/mm

DEGRADATION

A/D Conversion

16 bit

Data Output

16 bit

Auto Exposure Detection

Yes

X-ray period (ms) (=Window Time)

350 ~ 4000ms

Unit Interface

Connect to Control Box

Power unit interface

Connect to Control Box

Wired Communication

Yes

WLAN

IEEE802.11a/b/g/n/ac, 2.4GHz/5GHz

AP mode

Yes(Integrated)

Detachable Wire(Easy to plug / unplug)

Yes (Magnetic)

Shock monitoring

Yes

Image storage on DXD

Up to 200 images

Semi-dynamic Acquisition

5 fps

MAIN CABLE(DXD-CONTROL BOX)

Length

7m

LAN CABLE(CONTROL BOX-PC): OPTIONAL(WHEN BUYER REQUIRES THIS CABLE, IS SHIPPED ACCORDING TO BOM)

Length

10m

SYNC CABLE(CONTROL BOX - X-RAY GENERATOR): OPTIONAL(WHEN BUYER REQUIRES THIS CABLE, IS SHIPPED ACCORDING TO BOM)

Length

15m

ENVIRONMENTAL

Storage-Temperature

-20 to 60 ℃

Storage-Humidity

Less than 90% RH, No condensation

Storage-Pressure

50 ~ 106 kPa

Storage- Altitude

Less than 12,192 m

Operating-Temperature

10 to 35 ℃

Operating-Humidity

Less than 80% RH, No condensation

Operating-Pressure

70 ~ 106 kPa

Operating- Altitude

Less than 5000 m

PACKAGE

Dimension in Shipping (W x H x D)

621*352*562

Pallet Stuffing (20ft/40ft/40ft HC)

160/360/432

Weight in Shipping

11.5kg
