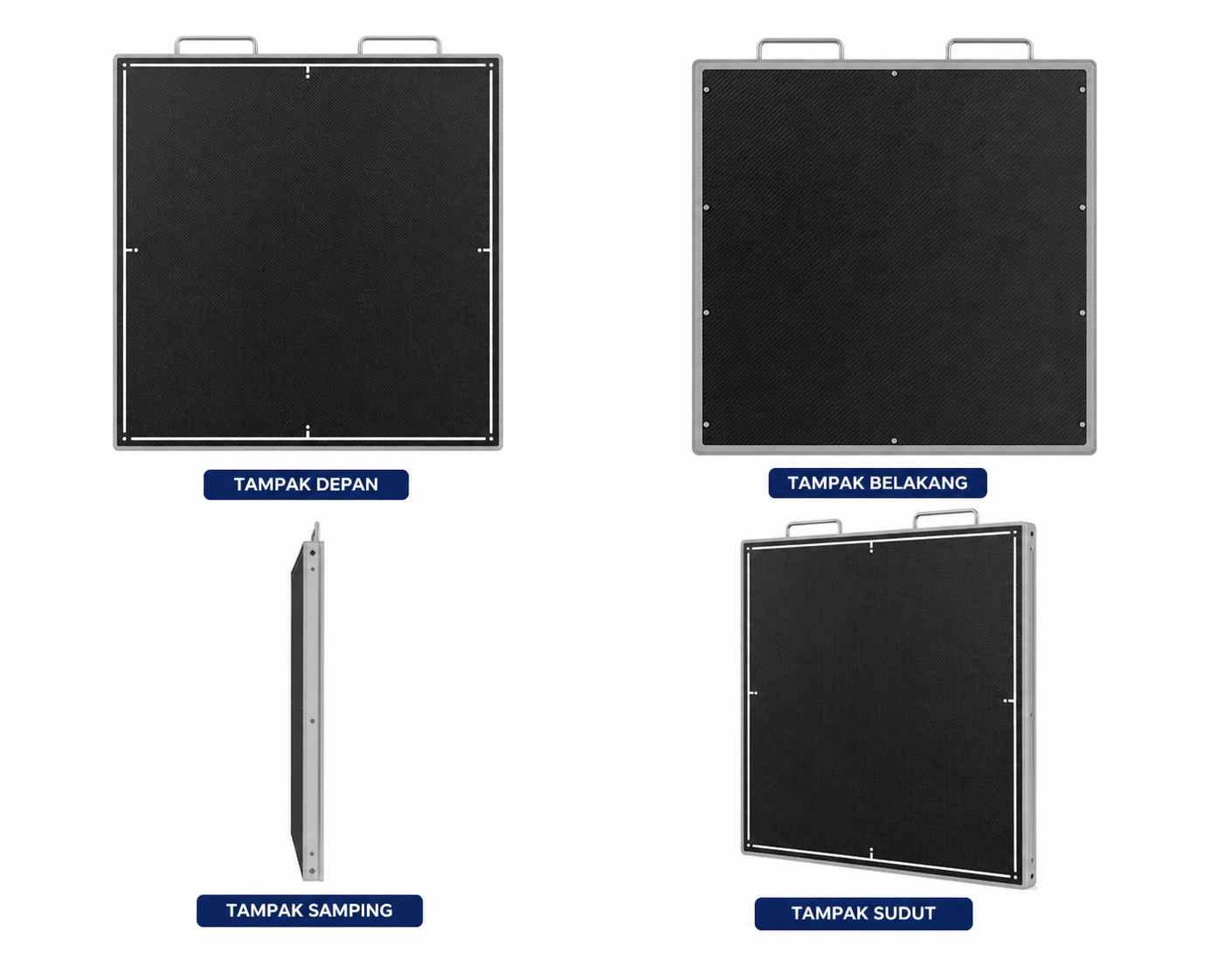

DIGITAL RADIOLOGI MSLCV17

MSLCV17  detektor flat panel X-ray digital nirkabel 17x17 inci (430x430 mm) yang portabel dan efisien untuk pencitraan medis. Menggunakan teknologi Direct-Deposit CsI untuk hasil gambar tajam dengan dosis radiasi rendah, alat ini memiliki daya tahan baterai hingga 5-8 jam, koneksi WiFi/LAN, dan resolusi tinggi 3.5

Scintillator : Direct-Deposit Csl

Active Area : 430 x 430 mm

Pixel Array : 3072 x 3072

Pixel Pitch : 140μm


Limiting Resolution : 3.57 Ip/mm

MTF : -63% (@l.O Ip/mm), -35% (@2.0 Ip/mm). -17% (@3.0 Ip/mm), -10% (@ 3.5 Ip/mm)

DQE (@ RQA 5, 27μGy) : 62% (@ 0.0 Ip/mm). -50% (@0.5 Ip/mm), -45% (@1.0 Ip/mm). -38% (@ 1.5 Ip/mm)

                                          32% (@ 2.0 Ip/mm), -24% (@ 2.5 Ip/mm), -17% (@ 3.0 Ip/mm), -10% (@ 3.5 Ip/mm)

Maximum Linear Dose : 70μGy

Dynamic Range: > 80 dB

Lag : < 0.02% (60 seconds after exposure)

A/ D Conversion :  16 bits

Communication Interface : Gigabit Ethernet, WiFi (2.4/5 GHz)

Wire Image Acquisition Time : 2-4 s

Exposure Control : F2AED, Manual Sync, Software Sync

Operating Environment : Natural Cooling

Temperature Range : Operating: 5 - 35'C, Storage: -20 - 55° C

Humidity Range : Operating: 30 - 75% RH, Storage: 10 - 90% RH (Non-condensing)

Dimensions : 460 x 460 x 15 mm

Weight : -4.6 kg

Housing Material : High-strength aluminum alloy w/ carbon fiber imaging surface

Maximum Power : Max. 48VA

Power Supply : 100- 240V AC

Frequency : 50/60 Hz
